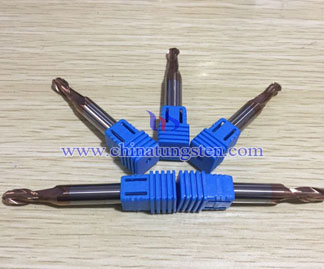

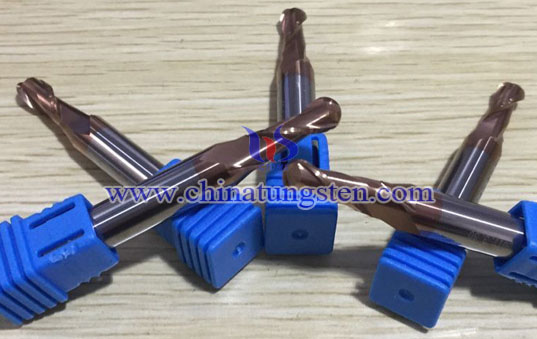

Tungsten Solid Carbide Taper Ball End Mills
Tungsten solid carbide taper ball end mills,high processing efficiency, used on milling or special tools. Excellent wear resistance and high steel cross-sectional shape combines efficient processing of the past can only be used "EDM" groove machined ribs (taper degree can be specified between 0 degrees to 40 degrees).
Processing materials: structural steel, alloy steel, tool steel and other materials
design and manufacturing characteristics:
1. helix angle of 30 °
2. Shank Diameter type using DIN6535HA h6
3. Super C coating
Variety of tungsten solid carbide taper ball end mills dimensions (unit: mm):
| Teeth(Z) | Blade diameter(D) | Shank Diameter(d) | α | Blade length(l) | Overall Length(L) |
| 2 | 0.5 | 4 | 0~15° | 4 | 50 |
| 0.6 | 4 | 0~15° | 4 | 50 | |
| 0.7 | 4 | 0~15° | 4 | 50 | |
| 0.8 | 4 | 0~15° | 4 | 50 | |
| 0.9 | 4 | 0~15° | 4 | 50 | |
| 1.0 | 4 | 0~15° | 4 | 50 | |
| 1.5 | 4 | 0~15° | 5 | 50 | |
| 2.0 | 4 | 0~15° | 6 | 50 | |
| 2.5 | 4 | 0~15° | 8 | 50 | |
| 2~4 | 3.0 | 6 | 0~15° | 10 | 50 |
| 4.0 | 6 | 0~15° | 15 | 60 |
