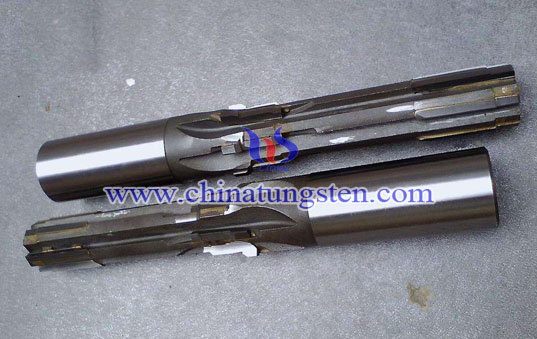

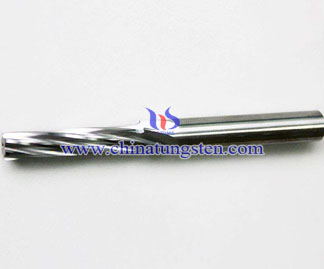

Tungsten Solid Carbide Cutter Reamer
Tungsten solid carbide cutter reamer finishing for gray iron, ductile iron, aluminum, carbon steel, stainless steel and other materials, there are 4 blade, 6 blade , 8 blade for straight fluted reamer, D-reamer and L-reamer .
Chinatungsten Online can provide high-quality tungsten solid carbide cutter reamer (helix angle α = 45 ° / α = 60 °):
- imported high-quality carbide bar.
- unique nanoscale multi-composite coatings.
- products unique structure, superior performance.
- manufacture of high precision, high surface quality of the workpiece, long tool life.
- be able to achieve intermittent drilling, hole machining relative inertia, through holes, blind holes, sink hole machining.
| Size(mm) | Size(mm) | Size(mm) | |||||||||
| d | D | l | L | d | D | l | L | d | D | l | L |
| 7 | 8 | 25 | 61 | 10 | 10 | 30 | 77 | 16 | 16 | 40 | 77 |
| 7 | 8 | 30 | 77 | 11 | 12 | 30 | 77 | 16 | 16 | 40 | 103 |
| 8 | 8 | 25 | 61 | 12 | 12 | 35 | 77 | 18 | 18 | 40 | 77 |
| 8 | 8 | 30 | 77 | 13 | 14 | 40 | 103 | 18 | 18 | 40 | 103 |
| 9 | 10 | 30 | 77 | 14 | 14 | 30 | 77 | 20 | 20 | 40 | 103 |
